Hard Chrome Plating

Time to Read: 1m 22s

Hard chrome plating can be used for a variety applications:
  • to reduce friction between moving parts
  • to improve parts’ durability by boosting their abrasion and wear resistance
  • to minimize seizing or galling
  • to increase parts’ oxidation resistance
  • to restore worn parts to their original dimensions

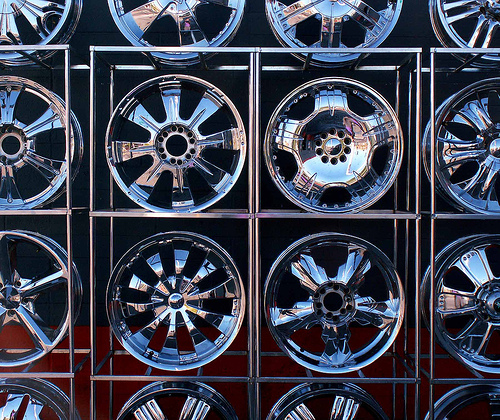

Also known as industrial chrome or engineered chrome, hard chrome is, as the name implies, very hard—generally between 65 and 69 on the Rockwell Scale. It is considerably thicker than decorative chrome, with standard thicknesses ranging from 0.2 mm to 0.6 mm (200-600 µm); for extreme wear resistance requirements, it can be 1 mm (1,000 µm) or more in thickness. Because hard chrome plating does not have a leveling effect, increasing its thickness tends to magnify surface defects and roughness. However, this can be overcome by plating extra thickness, then grinding down and lapping to meet surface finish requirements. To compensate for non-uniform deposition (again, due to the lack of leveling effect), workpieces that are less than ideally shaped in regards to electric field geometries require thicker plating and accompanying grinding. This more or less applies to every part except spherical or egg-shaped ones. Depending on the application, hard chrome plating is subject to a variety of quality standards and requirements. Plating on hydraulic piston rods, for example, must be tested for corrosion resistance via salt spray testing. Chrome plated car wheels.Chrome plated car wheels.
